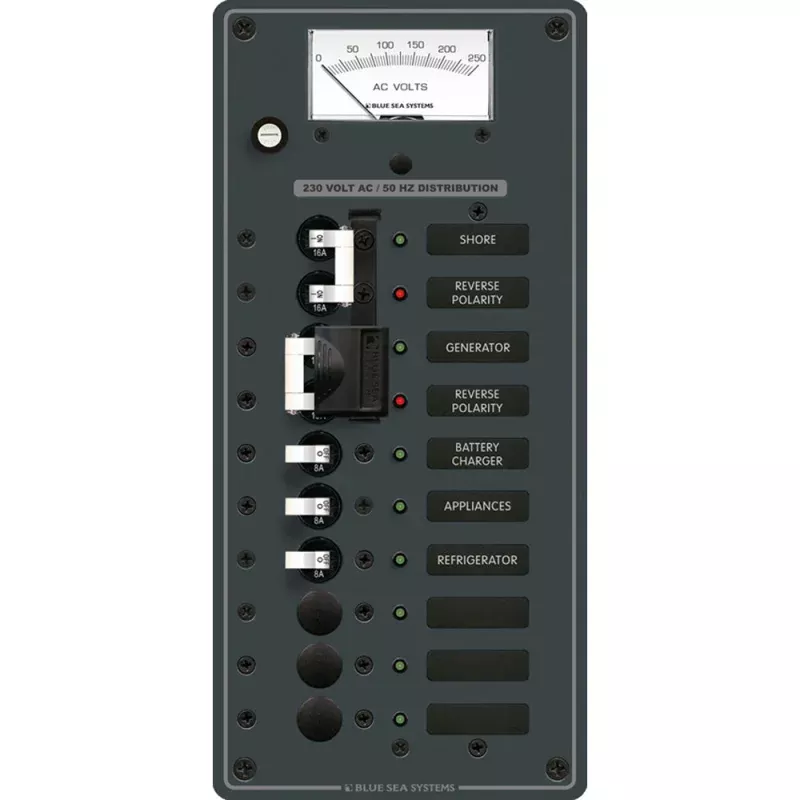

Blue Sea 8589 AC Toggle Source Selector (230V) – 2 Sources + 6 Positions [8589]

AC Toggle Source Selector (European)

p045.19PN:8589
White Switches

Features:

• Double pole AC main circuit breakers with installed lockout slide
• Prevents connecting both AC sources simultaneously
• Maximum panel amperage – 50 Amperes
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Labels

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • Voltage: 230v
  • AC/DC: AC
  • Max Breaker Quantity: 6
  • Box Dimensions: 4″H x 9″W x 12″L WT: 3.3 lbs
  • UPC: 632085085896

  Quick Guide (pdf)
  Owner’s Manual (pdf)
