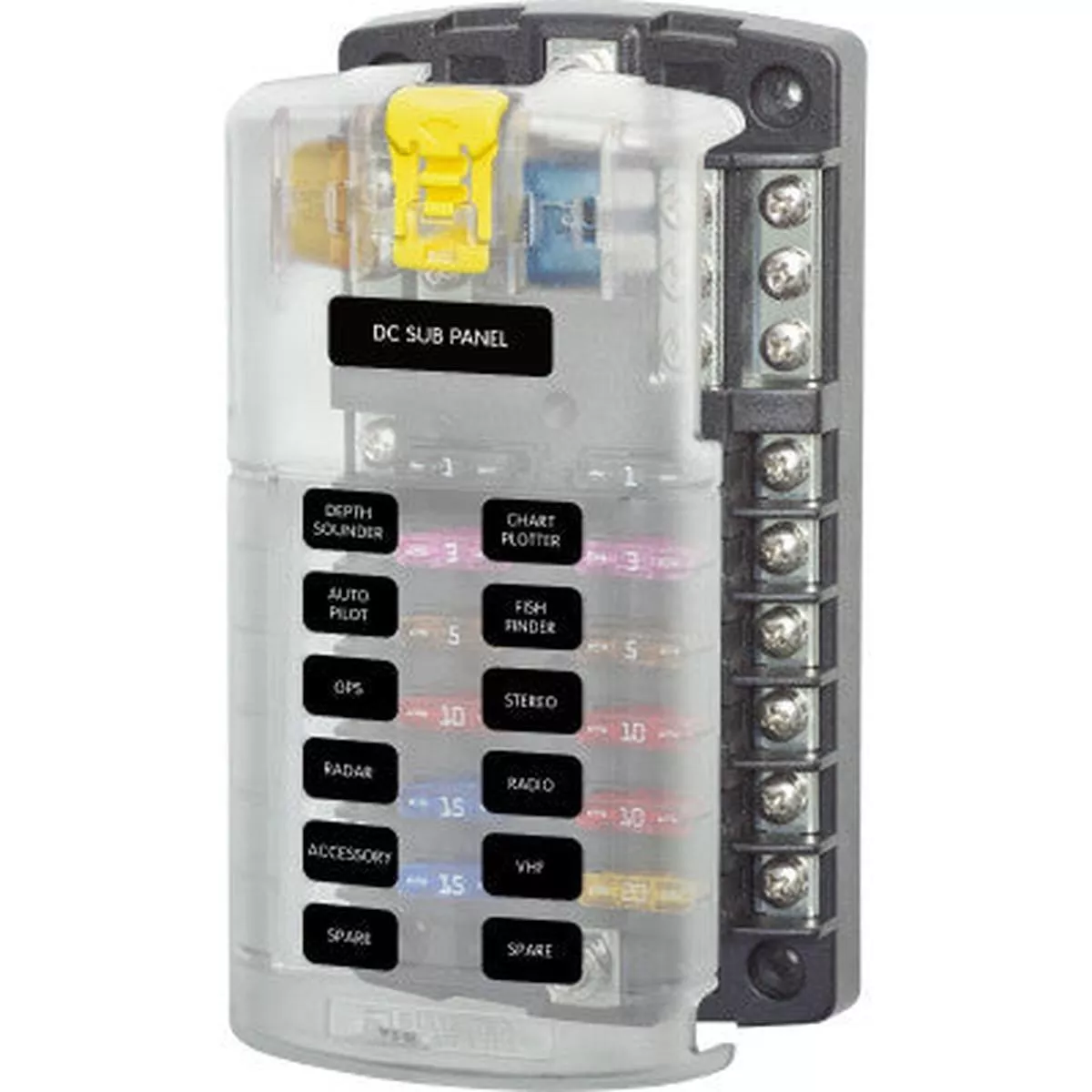

Consolidates branch circuits and in-line fuses
Positive distribution bus with 10-32 stud
Can be used for 24-hour circuits
Models available with or without a cover
Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems” Small Format Labels for circuit identification
Fuse blocks with covers include 20 write-on circuit labels
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Accepts ATO and ATC fast acting blade fuses
Fuses sold separately
Circuits 12
Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application. 100A per block
30A per circuit
Maximum Voltage 32V DC
Mounting 8 Screw (M4)
Negative Bus 10-32 Stud
Positive Bus 10-32 Stud
Recommended Torque 24 in-lb (2.71 Nm)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type 8-32 Screws with captive star lock washer
Weight 0.75lb (0.34 kg)
