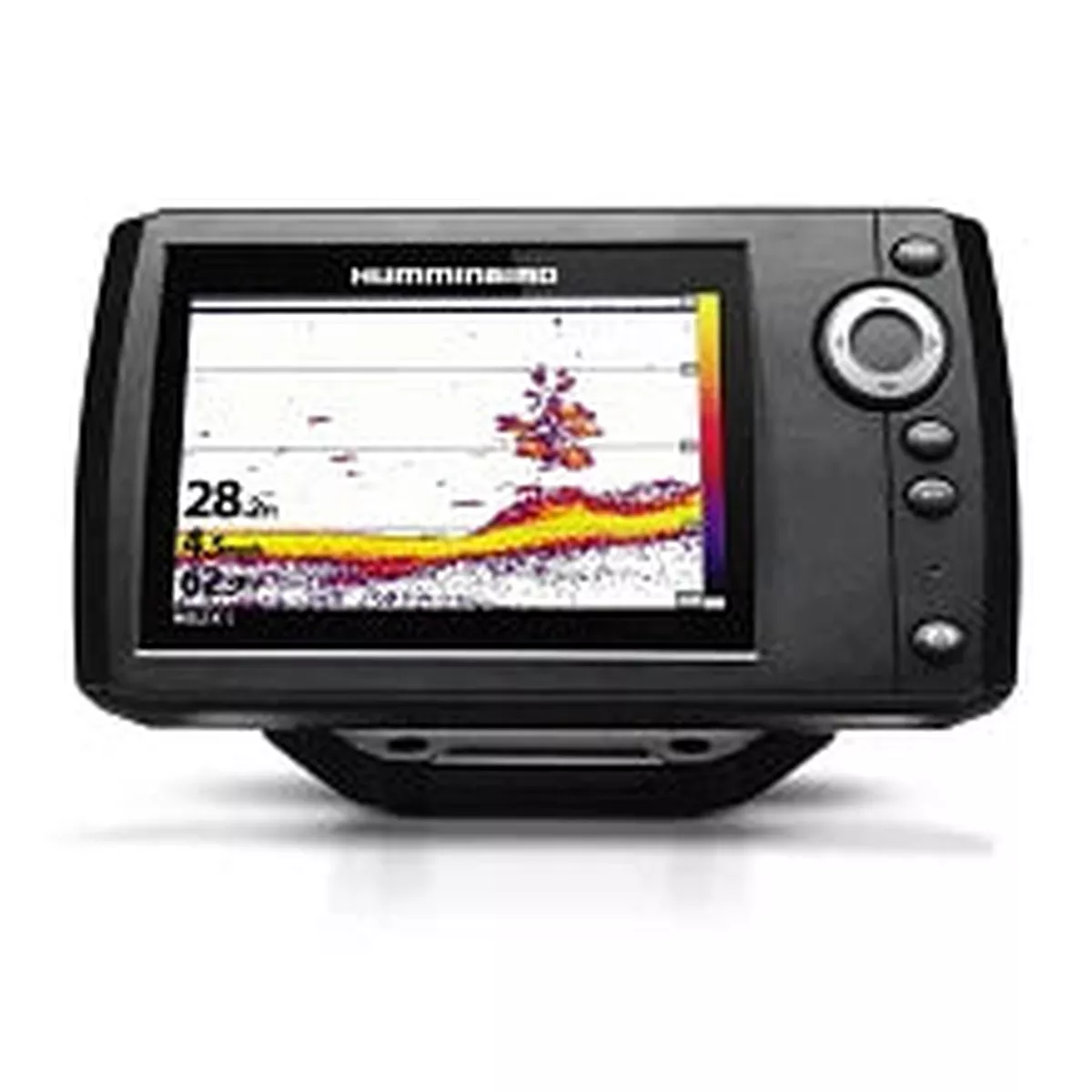

HELIX 5 SONAR G2Built for Serious Anglers
When fishing is in your DNA, there’s no such thing as too early or too far. The HELIX 5 SONAR G2 is designed to meet those high expectations with powerful features and uncompromising performance.
SwitchFire Sonar
Take full control of how your sonar returns appear. With two display modes, you can add or remove detail, adjust for water depth, temperature, and turbulence, and even track your lure presentationall at the push of a button.
DualBeam PLUS Sonar
Combining two sonar beams, this system delivers both high detail and wide coverage. Use the narrow beam for accurate returns of fish, structure, and bottom profiles, or the wide beam when you need to cover a larger area. Beams can be viewed separately, side-by-side, or blended for a complete underwater picture. Coverage area matches your depth.
Display and Interface
-
5″ widescreen color TFT display (800H x 480V)
-
16-bit color depth for crisp clarity
-
Simple keypad control
-
Standard gimbal mount included (7.55″ W x 4.64″ H x 3.3″ D)
Sonar and Transducer
-
DualBeam PLUS with 20 and 60 coverage at -10dB
-
Supports 83/200 kHz frequencies
-
Maximum depth: 1,500 ft with standard transducer
-
Includes XNT 9 20 T transducer (transom mount)
Power and Performance
-
Peak-to-peak power output: 4000 Watts
-
RMS power: 500 Watts
-
Power input: 10.820 VDC
-
Power draw: 615 mA
Additional Features
-
Built-in temperature sensor with alarm
-
Custom digital readouts and view selections
-
Optional speed reading
-
Software upgradeable
-
Optional in-dash mounting kit available (7.55″ W x 4.28″ H x 1.13″ D)
Limitations to Note
This model does not support GPS, chartplotting, sonar recording, or network connectivity (such as Ethernet or NMEA2000). It is also not compatible with MEGA Live, 360 Imaging, or advanced mapping systems such as LakeMaster or Navionics.
Product Details
-
Model: HELIX 5 SONAR G2
-
Product Code: 410190-1
-
Series: HELIX
-
UPC: 0082324048999
The HELIX 5 SONAR G2 is a no-nonsense, high-performance unit for anglers who want precision and clarity without the extras.
