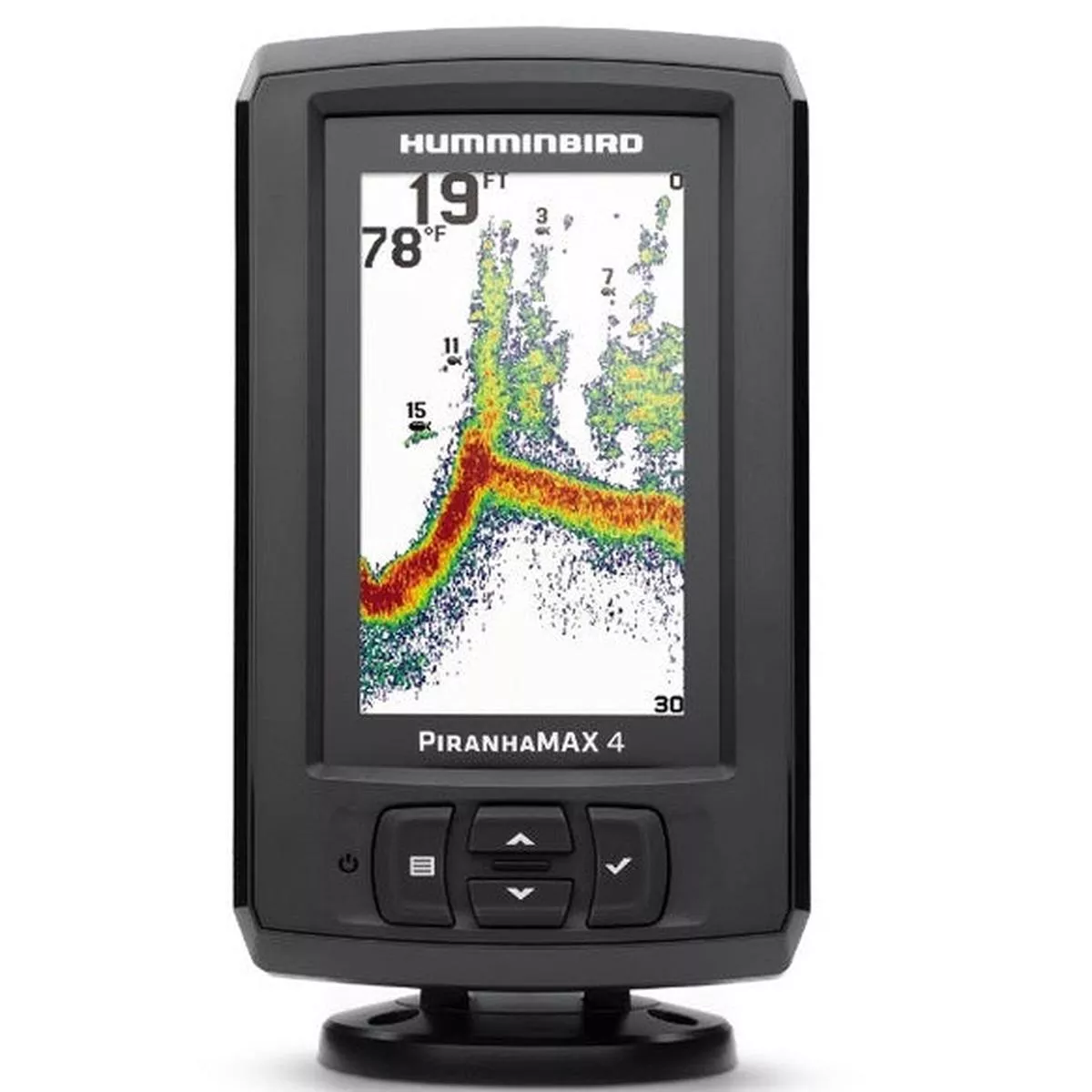

Humminbird PiranhaMax 4 4.3”” Color Fishfinder
Model: 410150-1
The PiranhaMAX 4 features a 256 color 480V X 272H, 4.3”” display with 2400 watts PTP power output with Dual Frequency sonar.
Specifications
| Display size | 4.3 in |
| Display resolution | 480 x 272 |
| Display type | Color TFT |
| Display colors grayscale | 256 colors |
| Standard sonar | DualBeam |
| Standard sonar coverage | 28 & 16 @ -10db |
| Standard sonar frequency | 200/455 kHz |
| Target separation | 2.5 in |
| Power output RMS | 300 watts |
| Power output Peak to Peak | 2400 watts |
| Depth capability | 600 ft |
| temperature | Built-in transducer |
| Speed | No |
| Backlight | yes |
| Input Voltage | 10.8-20 vDC |
| Input Draw | 180 mA |
| Dimensions | Gimbal Mount:3.914””W x 7.335””H x 3.621””D In Dash 3.914””W x 6.770””H x 2.600””D |
What’s in the Box:
- PiranhaMax 4
- Powercord
- Bracket
- XNT 9 28 T
- Documentation
