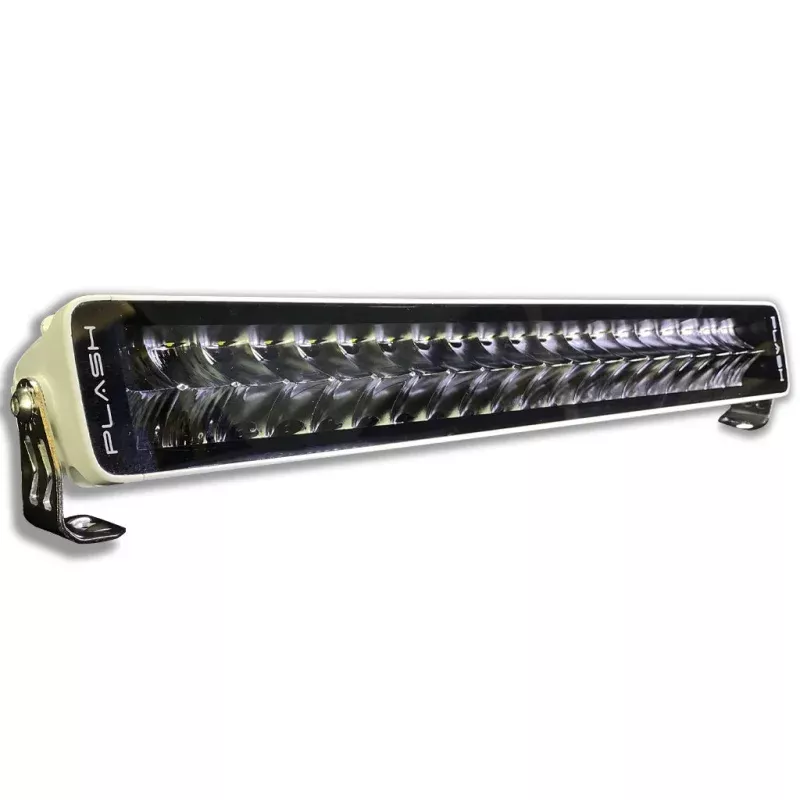

Plashlight X2-Series 20 Double Row LED Light Bar – White Housing

PlashlightX2-Series 20″ Double Row LED Light Bar – White Housing

The X2-Series Double Row Light Bar is a favorite for marine enthusiasts looking for top quality light bars for their boat. Featuring isolated dissimilar metals, an amazing beam pattern with minimum reflection on bow and a pressed fit assembly (less fasteners) this marine light bar will exceed your lighting expectations!

Whether you need a marine double row light bar, a truck LED light bar, or a UTV double row off-road light bar, the X2-Series delivers professional-grade performance in every size.

Want to compare lumen output, dimensions, and beam distance? Review the full X2-Series breakdown inside our Marine Catalog.

Also available: X2 20 LED Light Bar – Black Housing

Want a slimmer mounting option? See the comparable size in our SRX2-Series 20 Single Row LED Light Bar.

Key Features

• Double Row Precision BeamEquipped with our new hooded reflector and upgraded lens to reduce unwanted glare while projecting powerful light toward the horizon. A narrower profile and optimized beam pattern feature a crisp cut-off line that focuses light towards the horizon and minimizes wasted illumination below the mount point.

• Marine-Grade Durable ConstructionIP67 waterproof rating and constructed as a single unit body made with chrome coated stainless hardware that eliminates dissimilar metals & corrosion. Durable scratch resistant high impact polycarbonate lens. Chrome Coated stainless hardware. Extruded 6063 Aluminum body. New design to improve aerodynamics (noise reducers are not required).

• High-Output OSRAM LEDsPremium 5W OSRAM LED chips for cool, bright, long-lasting illumination

• Advanced Thermal ControlIntegrated TCS (Temperature Control System) maintains peak performance and extends LED life

• Electronics FriendlyMinimal RFI/EMC interference with protection for sensitive VHF/AIS systems. Over/Under and Reverse Polarity Protection.

Specifications

• Model:X2-20 (Double Row)
• Length: 20
• LED Type: 5W OSRAM CSHP
• Total Output: ~16,800 lumens*
• Wattage: ~200W*
• Beam Pattern: Combination / Horizon-Focused
• Waterproof Rating: IP67
• Color Temperature: 6000K Cool White
• Voltage: 9~32V DC
• Power: 8.6 amps @ 12V DC / 4.2 amps @ 24V DC
• Max Distance: 5,938ft
• Operating Temp: -40F to 145F
• Lifetime: 50,000 Hours or 5 years of continuous use
• Mounting: Adjustable corrosion-resistant brackets included. MIL 840-STD 8.6G Vibration Complaint.

*Actual output and wattage can vary slightly by unit and voltage input

INCLUDES

• X2-Series 20″ Double Row LED Light Bar (White Housing)
• (2) Chrome Coated Mounting Brackets
• Chrome Coated Stainless Steel Hardware
• Copper Tinned Marine Grade Extended Power Wire (9ft)
• Installation Manual
